SHOPFAN HVLS FAN
Additional details
SKU
F-SH3-1401S34
Weight
172 lb
Environment
Indoor, Covered Outdoor
Electrical Warranty
1-year
Mechanical Warranty
1-year
IP Rating
IP55
Need custom configurations or large quantities?*
Call our airflow experts at 877-244-3267
We're available 8 a.m. - 6 p.m. Mon - Fri (EST)
*Larger quantities may have longer lead times. Ask our experts for more info.
Serious Air. Simple Setup.
ShopFan is a 14 ft industrial HVLS fan that plugs into a standard 15A outlet.
Key Features
Ready to Run Out of the Box
ShopFan arrives pre-wired and factory tested. Its 15 ft power cord plugs into any standard 100–120V, 15A outlet. Mount it, plug it in, adjust speed from the OLED touchscreen. That's the entire install.

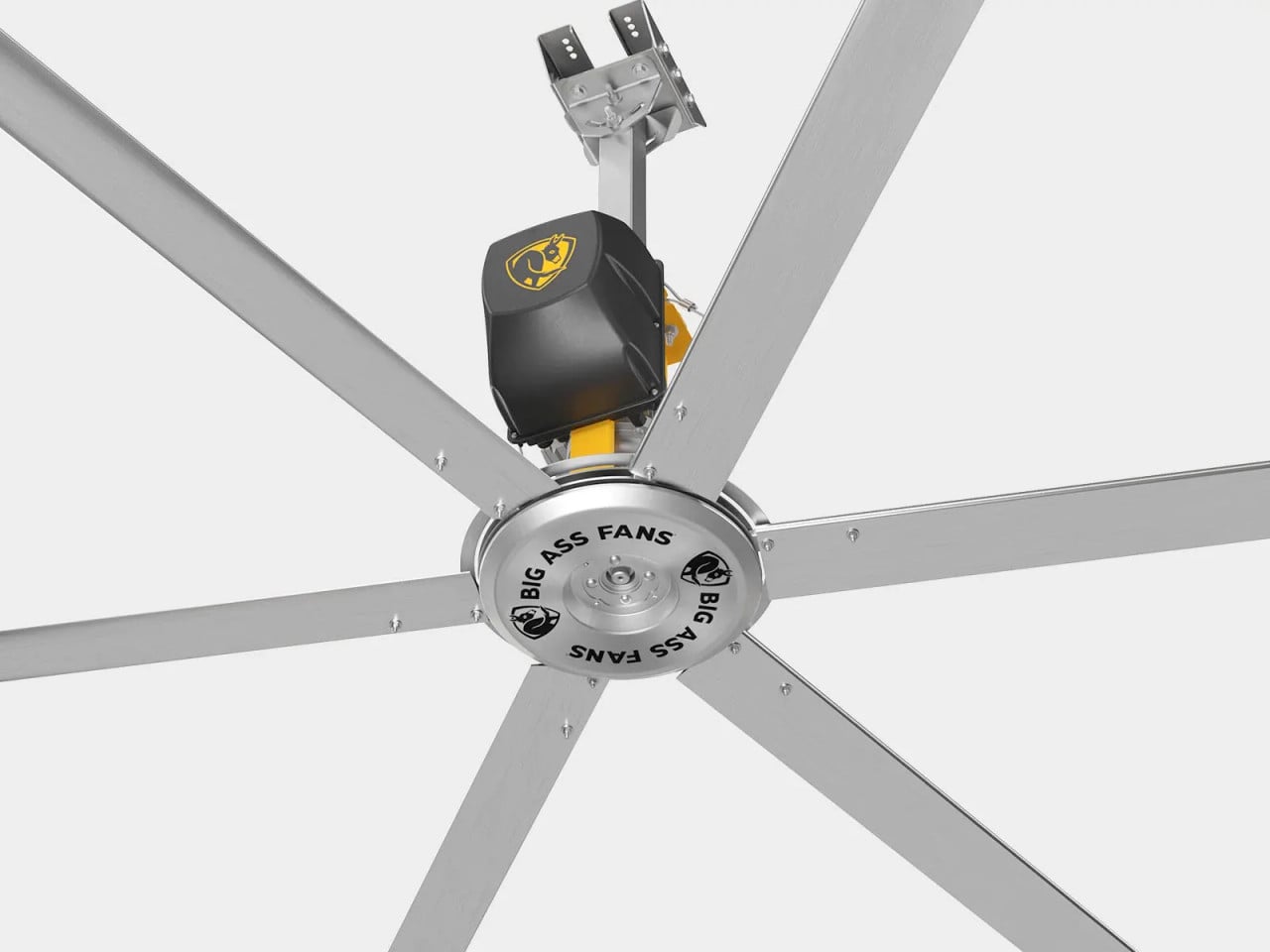

Industrial Gearbox.
A sealed helical gearbox with inline helical-cut gears, lubricated for life with synthetic oil, and a 1.0 hp industrial-grade motor. The same drivetrain technology in Big Ass Fans' commercial and industrial line — in a fan sized for smaller spaces.

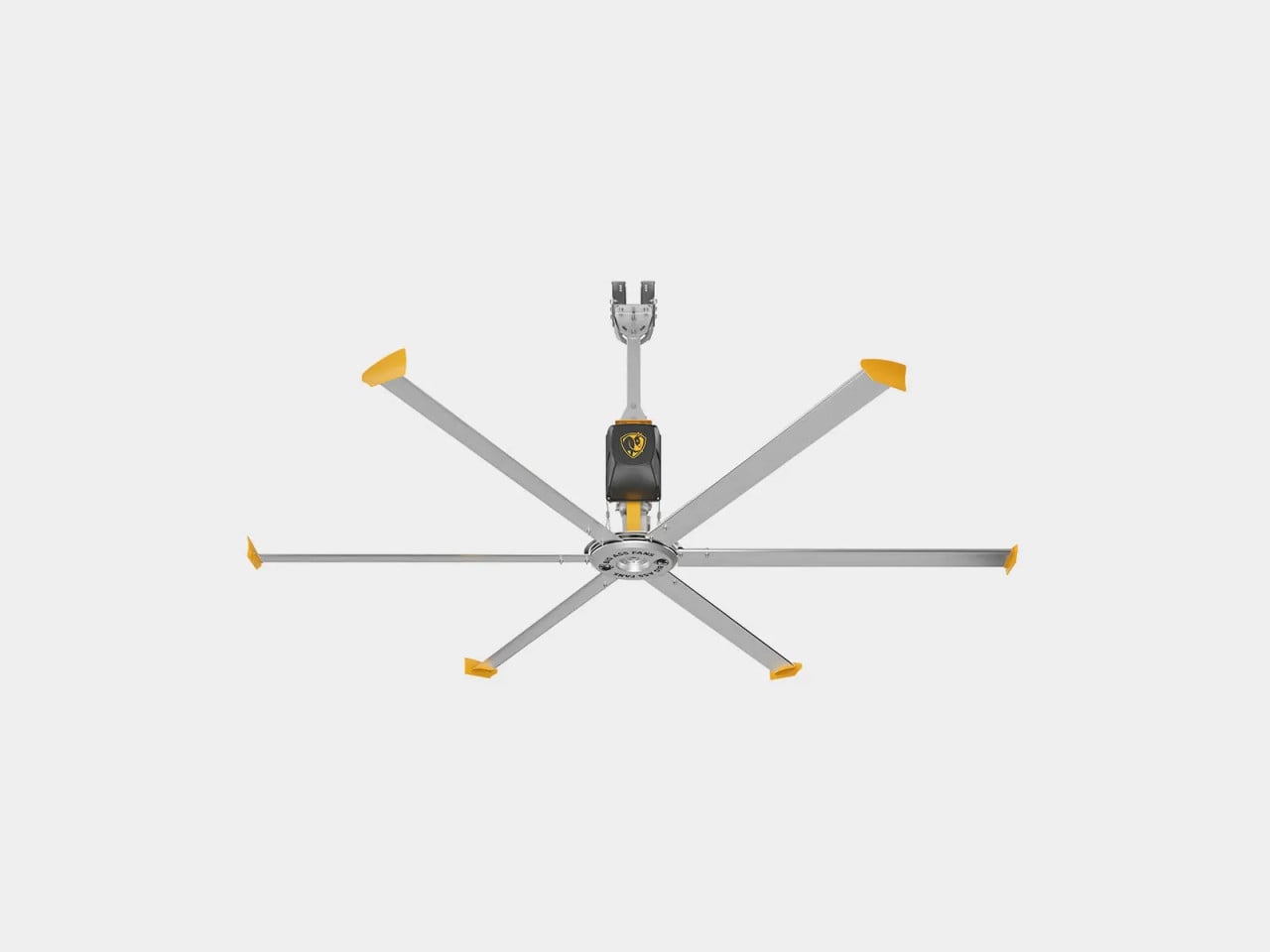

59,425 CFM. 14 ft of Coverage.
Six patented Powerfoil airfoils with winglets deliver up to 59,425 CFM across a 14 ft diameter. Mounts to I-beams, bar joists, purlins, or solid beams. Includes a 2 ft extension tube.
Redundant Safety at Every Point
Double safety cables, airfoil retainers, hub clips, Grade 8 hardware, fire relay integration. Industry-leading safety features come standard.
Control Options
Mounting Options
Powerfoil 6 fits a wide range of structural configurations to work in your facility.
I-Beam
Standard mounting. The most common configuration for industrial facilities.
Bar Joists
Compatible with bar joist ceilings using angle irons and Grade 8 mounting hardware.
Z-Purlins
Suitable for metal building structures with Z-purlin roof framing. Z-purlin kit sold seperately.
Solid Beam / Glulam
Requires engineering review. Call us or get a quote to get started. Call us (877-244-3267) to get started.
