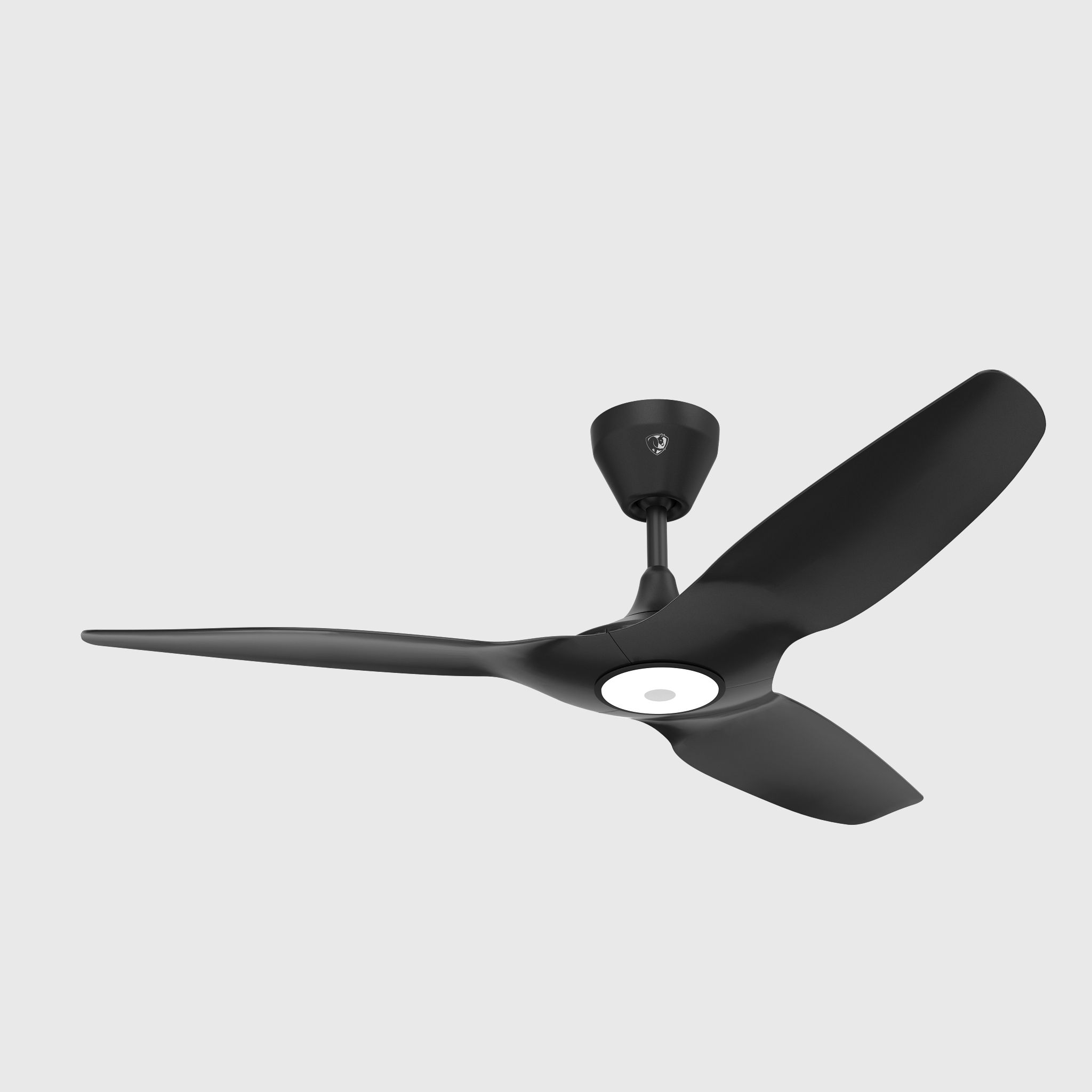

Haiku L Technical Documents and FAQs

Yes. The Haiku app is available for both iOS and Android.

REQUIRED:

iOS 9.0 or later; the app is compatible with iPhone, iPad, and iPod touch.

Android 5.0 or later.

Of course! You can order a new one here.

If you have connected your Haiku fan to your mobile device using the Haiku app, the fan’s internal clock is synchronized with the time on the mobile device. If your fan’s scheduled events are not occurring at the proper time, make sure the time on your mobile device is accurate, then re-launch the app.

Note: A factory reset will re-broadcast the default Haiku Wi-Fi network, clear any device and room names, delete existing scheduled events, and reset all other settings back to original values.

1. Press and hold any power button (fan or light) on your remote for 5 seconds. After 5 seconds, the blue LED indicators will blink.

2. Within 30 seconds of the LEDs blinking, press any minus button on your remote. The fan will beep, and its LEDs will blink rapidly.
3. When the LED indicators stop blinking, the factory reset is complete.

If the above reset sequence did not work, bring your fan to a complete stop and try the following:

1. Press the following button sequence on the remote: Whoosh, Whoosh, Clear, Timer, Speed Down.
2. You will hear a beep after pressing each button, indicating that the fan received the command.
3. When the LED indicators stop blinking, the factory reset is complete. Check your mobile device’s Wi-Fi settings to make sure the fan’s network is now visible.

Note: Disabling your Haiku products’ Wi-Fi signal will make it invisible in your mobile devices’ Wi-Fi settings and prevent connection to the Haiku app.

1. Make sure your fan has firmware version 2.3.2 (or later). To see which firmware version your fan has, open the Haiku Home App, tap  , then tap Update Firmware to see the firmware version of each connected Haiku product. If required, you can update your fan’s firmware from this screen.
2. Restore your fan to its factory settings.
3. While pointing the remote at the fan, press and hold the fan ON/OFF button until the LED indicators blink.
4. Within 30 seconds, press the “plus” button five times.
5. The LED indicators will turn on briefly and then stop blinking. The fan’s Wi-Fi signal is now disabled.

Note: To re-enable the products’ Wi-Fi signal, complete a network reset using the remote control.

Yes. However, Big Ass Fans does not recommend reversing your fan. Instead, run the fan on low speed settings to gently circulate air without creating a draft. Not convinced? Click here to find out why reversing your fan (especially in winter) isn’t necessary.

If you’d still like to reverse your fan, do the following:

1. Bring the fan to a complete stop.
2. On the IR remote, press Whoosh, Whoosh, Whoosh, Speed Up (or Fan Power).

• Whoosh mode varies fan speed up and down to simulate natural breezes. Set the fan to your maximum desired speed, and then press the Whoosh button. To exit Whoosh mode, press the On/Off button, manually change the fan speed, or press the Whoosh button again.
• Sleep, Timer, and Clear commands will vary between SenseME-enabled fans and non-SenseME fans.

I SERIES, HAIKU L WITH WI-FI MODULE, AND OTHER SENSEME-ENABLED FANS

• Sleep: Press the Sleep button to enable your Sleep Mode settings as specified in the Haiku app. Press again to disable Sleep settings.
• Timer: Press the Timer button once for every hour you want the fan to run. The fan will turn off after the selected number of hours. For example, pressing the Timer button five times will turn the fan off after five hours of run time.
• Clear: Press the Clear button to disable the Timer, if it’s currently active.

HAIKU L FANS WITHOUT WI-FI MODULE

• Sleep: Press the Sleep button to set an eight-hour timer. The fan will decrease in speed each hour until it reaches Speed 1. The fan will turn off automatically after eight hours.

HAIKU C, NON-SENSEME ENABLED FANS (EXCLUDING HAIKU L)

• Timer: Press the Timer button once for every hour you want the fan to run. The fan will turn off after the selected number of hours. For example, pressing the Timer button five times will turn the fan off after five hours of run time.
• Sleep: Press the Sleep button when the Timer is enabled, and the fan will decrease its speed once per hour until it reaches Speed 1 or until the timer ends.
• Clear: Press the Clear button to disable the Timer or Sleep Mode.

Bring the fan to a complete stop, and then press the following button sequence on the remote: Whoosh, Whoosh, Whoosh, Speed Up (or fan On/Off). Repeat to return the fan to forward operation.

USING THE HAIKU APP:

IOS

1. Bring the fan to a complete stop.
2. In the Haiku Home app, tap , then tap Rooms & Devices.
3. Select the fan you wish to reverse.
4. Toggle the Reverse Fan switch to enable or disable reverse.

ANDROID

1. Bring the fan to a complete stop.
2. In the Haiku Home app, tap , then tap Settings.
3. Tap Devices and select the fan you wish to reverse.
4. Toggle the Reverse Fan switch to enable or disable reverse.

Whoosh^® Mode silently varies fan speed to mimic cooling natural breezes. Enable Whoosh Mode to enjoy the feeling of fresh air on a warm day—or any time you feel like it.

ENABLING WHOOSH MODE

1. In the Haiku app, tap a room on the Home screen, and then tap.
2. Toggle Whoosh to enable it, and then tap Done.

DISABLING WHOOSH MODE

1. In the Haiku app, tap a room on the Home screen, and then tap.
2. Toggle Whoosh to disable it, and then tap Done.

Sleep Mode lets you choose unique fan settings for personalized nighttime comfort. When Sleep Mode is on, all other features are disabled—nothing should disturb your sleep, including your ceiling fan.

When you enable Sleep Mode, all schedules, modes, and the motion sensor will be disabled, and the fan light will turn off. If you use the app, remote, or Haiku Wi-Fi Wall Control to turn the light back on during the night, Sleep Mode will be disabled.

Note: To enable SenseME features for a Haiku L fan, you will need to install the Wi-Fi module in the fan’s control box and install the Haiku Wi-Fi Wall Control.

ADJUSTING SLEEP MODE SETTINGS

1. In the Haiku app, tap a room on the Home screen, and then tap .
2. Tap Sleep Settings.
3. Select your ideal sleeping temperature.
   This is the temperature the fan will attempt to simulate while you sleep. The fan will analyze ambient temperature and humidity, and it will adjust its speed to keep you comfortable throughout the night.
4. Set the Min Speed and Max Speed to your desired minimum and maximum fan speeds.
   When the fan is in Sleep Mode, it will run at your selected minimum speed whenever the room temperature is at or below your ideal sleeping temperature. The fan will not run above your selected maximum speed when it is in Sleep Mode.
5. Tap the back button, and then tap Wake Up Settings.
6. Toggle Light to enable it if you want the light to turn on when you disable Sleep Mode. Drag the slider to the desired light brightness.
7. Tap the back button, and then tap Done.

USING SLEEP MODE

1. In the Haiku app, tap a room on the Home screen, and then tap.
2. When you are ready to fall asleep, toggle Sleep Mode to enable it.
   You can also press the Sleep button on the remote. The fan will adjust to achieve your ideal comfort level throughout the night.
3. When you wake up, toggle Sleep Mode to disable it.
   You can also press the Sleep button on the remote. The fan will resume the speed it was at before you went to sleep, and the light will turn on, if enabled.
4. Tap Done.

The Scheduling feature sets precise schedules for fan and light control modes. Schedule an event to include an app feature when you know you’ll need it—or disable it when you won’t. Set your lights to turn on while you’re on vacation, or disable the motion sensor at night.

Note: Available scheduling features depend on the types of products the room contains. You may not see all of the options shown below.

CREATING A NEW SCHEDULED EVENT

1. In the Haiku app, tap a room on the Home screen, and then tap .
2. Tap .
3. Select the days on which the scheduled event should occur and the time at which the event should start. Dark bubbles indicate the days on which the event will occur.
4. Select the features that will be included in the scheduled event. Bubbles with check marks indicate selected features. Options for each selected feature appear at the bottom of the screen.
5. Scroll down to view all feature options. Select the features you wish to enable or disable as part of the event, and set feature options.
6. Tap Create, and then tap Done.

DELETING A SCHEDULED EVENT

1. In the Haiku app, tap a room on the Home screen, and then tap .
2. Tap the scheduled event, and then tap Delete in the top right corner.
3. Tap Delete to confirm, and then tap Done.

HOW DO I SCHEDULE A FAN OR LIGHT TO TURN OFF?

1. In the Haiku app, tap a room on the Home screen, then tap .
2. Tap .
3. Select the days on which the fan and/or light should turn off and the time at which it should happen.
4. Tap to select the Fan and/or Light bubble.
5. Tap Mode for the fan and/or light, and choose Off.
6. Tap Create, and then tap Done.

WHAT HAPPENS IF I ADD A PRODUCT WITH A SCHEDULE TO A ROOM THAT HAS A DIFFERENT SCHEDULE?

If there is a scheduling conflict between the product and the room, the room schedule will override the product’s individual schedule.

To get your Haiku products to work together, make sure that you place them in the same “room” when you first connect each one to the Haiku app.

Follow the instructions below to make adjustments to your “rooms” to suit your preferences.

ADDING A ROOM

IOS

1. In the Haiku app, tap  , and then tap Rooms & Devices
2. Tap Edit, and then tap.
3. Specify the room type and name, and then tap Save.
4. Drag the product(s) you want to add to the room under the room heading.
5. Tap Done twice to return to the Home screen.

ANDROID

1. In the Haiku app, tap  , then tap Settings and select Rooms.
2. Tap the button in the top right corner and select Add Room.
3. Give your room a name, choose a room type, and select which devices are included in this room, then tap OK.
4. Tap the back button to return to Room Settings and verify that your new room has been created.

Note: You must assign a Haiku product to a newly-created room. If you create a new room but leave Rooms & Devices before adding a product, the new room will be deleted.

DELETING A ROOM

IOS

1. In the Haiku app, tap  , and then tap Rooms & Devices.
2. Tap Edit.
3. Drag all products out from under the room heading you want to delete.
4. Tap Done twice to return to the Home screen. The room is removed from the Home screen.

ANDROID

1. In the Haiku app, tap , then tap Settings and select Rooms.
2. Select the room you wish to delete.
3. Tap Included Devices and uncheck each device in the list.
4. Tap OK, then tap the back button to verify that the room has been deleted.

MOVING A PRODUCT TO A DIFFERENT ROOM

IOS

1. In the Haiku app, tap , and then tap Rooms & Devices.
2. Tap Edit.
3. Drag the product under the desired room heading.
4. Tap Done twice to return to the Home screen.

ANDROID

1. In the Haiku app, select the destination room from the Home screen.
2. Tap the button in the top right corner of this screen and select Room Settings.
3. Tap Included Devices, then tap the checkboxes next to the names of the devices you want to be in this room.
4. Tap OK.

EDITING ROOM DETAILS

IOS

1. In the Haiku app, tap  , and then tap Rooms & Devices.
2. Tap  next to the room name.
3. Edit the room type or name, and then tap the back button.
4. Tap Done to return to the Home screen.

ANDROID

1. In the Haiku app, select the room you wish to edit from the Home screen.
2. Tap the button in the top right corner of this screen and select Room Settings.
3. Make the desired edits.

ROOM CONTROL SCREENS

Tap a room on the Home screen to access the Room Control screen. You can simultaneously control all Haiku products in a room from the Room Control screen. Tap a feature icon at the bottom of the Room Control screen to access the feature control screen.

Note: The features available depend on the types of products the room contains.

1. Press and hold the fan On/Off button until the fan’s LED indicators start blinking.
2. Within 30 seconds of the LEDs flashing on, press the fan On/Off button again to complete the reboot.
3. When the LED indicators stop blinking, the reboot is complete.

With your Haiku account, you can pair your Haiku products with your smart thermostats to increase energy savings and live more comfortably. When your Haiku fan is connected with a smart thermostat, they work together to reduce heating and cooling costs.

To pair your Haiku fans with a smart thermostat, sign into your Haiku account and make sure your fans are connected to the account. See How do I connect my Haiku products to my Haiku account for instructions.

Note: Haiku fans currently work with ecobee smart thermostats. To pair your Haiku L fan with a smart thermostat, you must have a Haiku Wireless Wall Control and Haiku L Wi-Fi module.

PAIRING A SMART THERMOSTAT WITH A FAN

1. Follow the instructions included with the thermostat to install the thermostat and set up your thermostat account. Remember your password — you will need it later.
2. Open the Haiku app. Tap , then tap Smart Home Integration and select Add Thermostat Integration. If you are not signed in to a Haiku Home account, you will be prompted to create or sign in to an account.
3. Select your thermostat type, and then follow the on-screen instructions to sign in to your account. It may take a few seconds for the sign-in screen to load.
4. When prompted, select the thermostat you want to pair with your fan, then tap Next.
5. When prompted, select the fan you want to pair with your thermostat, then tap Next. All fans assigned to the connected fan’s room will follow your Smart Mode settings.
6. Set your ideal temperature, minimum fan speed, and maximum fan speed, then tap Next.
7. On the Setup Complete screen, tap Done. Your thermostat is now paired with your fan.

MANAGING THERMOSTATS AND FANS

1. In the Haiku app, tap , then tap Smart Home Integration and select Add Thermostat Integration.
2. Select your thermostat type.
3. When prompted, select the thermostat you want to pair with your fan, then tap Next.
4. When prompted, select the fan you want to pair with your thermostat, then tap Next. All fans assigned to the connected fan’s room will follow your Smart Mode settings.
5. Set your ideal temperature, minimum fan speed, and maximum fan speed, then tap Next.
6. On the Setup Complete screen, tap Done. Your thermostat is now paired with your fan.

CONNECTING AN ADDITIONAL SMART THERMOSTAT ACCOUNT

1. In the Haiku app, tap , then tap Smart Home Integration and select Add Thermostat Integration.
2. Follow the on-screen instructions to connect your new account.

WHY DOESN’T MY THERMOSTAT RESPOND INSTANTLY?

• It takes up to 60 seconds for the thermostat to receive and process a command from the app.

CAN I CONNECT MORE THAN ONE FAN TO MY THERMOSTAT?

• Not exactly. When you pair a Haiku fan with a smart thermostat, all other fans assigned to that fan’s room will follow your Auto Comfort settings. The Smart Thermostat settings will only note the connection to a single fan, however.

The motion sensor detects when you enter or leave a room, turning the fans, lights, or both on and off automatically. Schedule the motion sensor to disable when you know you’ll be away from home so that it doesn’t turn on every time the cat walks into the room.

When the motion sensor is enabled for a room, all fans and lights in the room will simultaneously turn on or off when motion is detected. Use this feature in larger spaces instead of turning on the fans and lights each time you enter the room.

Note: Your fans or lights must be on when you leave the room if you want it to turn on when you re-enter the room. If the fan or light was turned off manually when you left, it will remain off when you return.

Note: The  Fan setting is available only if the room contains fans. The  Light setting is available only if the room contains fans with lights, Haiku Lights, or both.

Note: To enable SenseME features for a Haiku L fan, you will need to install the Wi-Fi module in the fan’s control box and install the Haiku Wi-Fi Wall Control.

ENABLING THE MOTION SENSOR

1. In the Haiku app, tap a room on the Home screen, and then tap .
2. If you want the fans in the room to turn on when motion is detected and off when no motion is detected, toggle  Fan to enable it.
   The  Fan setting is available only if the room contains fans.
3. If you want the lights in the room to turn on when motion is detected and off when no motion is detected, toggle  Light to enable it.
   The  Light setting is available only if the room contains fans with lights, Haiku Lights, or both.
4. Tap Turn Off After, and then select how long the fans, lights, or both should stay on after motion is no longer detected. The minimum setting is one minute.
5. Tap Done.

DISABLING THE MOTION SENSOR

1. In the Haiku app, tap a room on the Home screen, and then tap .
2. Toggle  Fan,  Light, or both to disable them. The fans and lights will stop detecting your presence in the room and will no longer respond to motion.
3. Tap Done.

Haiku fans and lights can be set to work automatically by enabling their motion sensors and/or Smart Mode settings in the Haiku app.

Follow the instructions below to program and adjust these settings.

Note: To enable SenseME features for a Haiku L fan, you will need to install the Wi-Fi module in the fan’s control box and install the Haiku Wi-Fi Wall Control (the Haiku L wall control is no longer available for purchase).

ENABLING THE MOTION SENSOR

Note: your fan or light must be on when you leave the room if you want it to turn on when you re-enter the room. If it was turned off manually when you left, it will remain off when you return.

1. In the Haiku app, tap a room on the Home screen, and then tap .
2. If you want the fans in the room to turn on when motion is detected and off when no motion is detected, toggle  Fan to enable it.
   The Fan Sensor Enabled setting is available only if the room contains fans.

3. If you want the lights in the room to turn on when motion is detected and off when no motion is detected, toggle Light to enable it.
   The Light Sensor Enabled setting is available only if the room contains fans with lights, Haiku Lights, or both.

4. Tap Turn Off After, and then select how long the fans, lights, or both should stay on after motion is no longer detected. The minimum setting is one minute.

DISABLING THE MOTION SENSOR

1. In the Haiku app, tap a room on the Home screen, and then tap .
2. Toggle  Fan,  Light, or both to disable them. The fans and lights will stop detecting your presence in the room and will no longer respond to motion.

ENABLING SMARTER COOLING

Set your ideal temperature, and the fan will automatically adjust to find the most comfortable speed during Smarter Cooling. Be sure to set your minimum and maximum fan speeds.

1. In the Haiku app, tap a room on the Home screen, and then tap .
2. Select Cooling from the Auto Comfort drop-down.
3. Select your ideal temperature.
   1. This temperature reflects your ideal comfort level. When you enable Auto Comfort, your fan will analyze ambient temperature and humidity, adjusting its speed automatically to keep you comfortable.
4. Tap Min Speed and Max Speed to set your desired minimum and maximum fan speeds.
5. During Smarter Cooling, the fan will run at your selected minimum speed whenever the room temperature is at or below your ideal temperature. The fan will not run above your selected maximum speed during Smarter Cooling.
6. Tap Done. The Fan slider on the Room Control screen will indicate that Smarter Cooling is enabled.

ENABLING SMARTER HEATING

Smarter Heating saves you up to 25 percent on your heating bills by recirculating the heat trapped at the ceiling. When you enter the room, your fan will spin slowly, gently pushing hot air down to your level without creating a draft. When you leave the room, Smarter Heating signals the fan to speed up, mixing the warm air in the space.

1. In the Haiku app, tap a room on the Home screen, and then tap .
2. Select Heating from the Auto Comfort tab.
3. When you enter the room, the fan will spin slowly, gently pushing hot air down to your level without creating a draft. When you leave the room, the fan will speed up automatically, mixing the warm air in the space.
   1. The Ideal Temperature and Min & Max settings are disabled during Smarter Heating.
4. Tap Done. The Fan slider on the Room Control screen will indicate that Smarter Heating is enabled.

ENABLING SMARTER LIGHTING

Smarter Lighting mode automatically adjusts Haiku Light’s brightness level as ambient light levels change (when the afternoon sun hits your living room, for example) throughout the day. When you set your ideal light brightness, Haiku Light takes a “snapshot” of the room’s current lighting levels, and adjusts to keep the room lit to your preference. If you manually adjust your light’s brightness, Smarter Lighting will update to match your new preference. Smarter Lighting is only available on Haiku Lights.

1. In the Haiku app, tap a room on the Home screen, and then tap .
2. Toggle on Smarter Lighting.
3. Use Min Brightness and Max Brightness to set your ideal room brightness and your light’s minimum and maximum brightness levels.
4. Tap Done.

ENABLING YOUR SMART THERMOSTAT SETTINGS

See Smart Thermostats for instructions on pairing a smart thermostat with your fan.

1. In the Haiku Home app, tap a room on the Home screen, and then tap .
2. Select the appropriate smart thermostat setting (Works with Nest or ecobee pairing) from the Auto Comfort tab.
3. When your thermostat switches to cooling or heating mode, it will automatically signal the fan to switch to Smarter Cooling or Smarter Heating.
4. Tap Done.

DISABLING AUTO COMFORT

1. In the Haiku Home app, tap a room on the Home screen, and then tap .
2. Under Auto Comfort, select Off.
3. Tap Done.

To pair your Haiku products with third-party devices like Amazon Echo, Nest Learning Thermostat, and ecobee smart thermostat, they must be connected to your Haiku account.

CONNECTING HAIKU PRODUCTS TO YOUR HAIKU ACCOUNT

To connect a Haiku product to your Haiku account, the product must be connected to the app and your home Wi-Fi network. Your mobile device must also be connected to your home Wi-Fi network. See How do I set up the Haiku app? for instructions.

1. In the Haiku app, tap , then tap Smart Home Integration (iOS) or Integrations (Android).
2. Under Other Haiku Devices, tap + next to the product to connect it to your account.
3. The product will be added under My Haiku Devices.

REMOVING HAIKU PRODUCTS FROM YOUR HAIKU ACCOUNT

1. In the Haiku app, tap , then tap Smart Home Integration.
2. Under My Haiku Devices, tap the product you want to remove.
   1. iOS: Tap Remove
   2. Android: Tap the button in the top right corner of the screen and select Remove.

The product is now listed under Other Haiku Devices. You can reconnect the product to your account any time you are connected to your home Wi-Fi network by tapping + next to the product name under Other Haiku Devices.

Note: Since our IR remotes are universally programmed, no “pairing” is required. However, if you’re having trouble getting your remote to work, try the following:

• Make sure the clear plastic battery tab has been removed, a working battery is installed, you are within range, and you have direct line of sight to the fan/light you’re attempting to control.
• If the remote still does not work after satisfying the above requirements, there may be a another issue (see instructions below).

FOR HAIKU FANS AND HAIKU I SERIES FANS, TRY THE FOLLOWING:

1. Verify that the fan is receiving power by power cycling the fan. To do this:
   1. Cut power to the fan via standard on/off wall switch, or the breaker if standard wall switch is not applicable.
   2. Wait at least 5 minutes, and then restore power.
2. The fan will beep once as it powers on (unless you have disabled beeps in the app) and blue LEDs on the bottom of the motor may light up.
   1. If you do not hear a beep, verify that the fan is wired correctly, as shown in the installation guide.
   2. If you do hear the fan beep during a power cycle, stand directly beneath the fan and attempt to use the IR remote. Depending on fan height and installation location, IR range can vary.
3. If you’ve followed these steps and are still unable to use your IR remote, please give us a call.

FOR HAIKU L AND HAIKU C FANS, TRY THE FOLLOWING:

Verify all ground wiring and motor harness connections are secure.

• Make sure that the yellow clip is connected to the fan motor.
• Motor post ground screw should be connected at the extension tube base.
• Make sure the green identification sticker has been removed.
• Make sure that Upper extension tube ground wire is secured to outside of mounting bracket hex screw.
• Make sure that the control box wiring harness ground, upper mounting bracket ground, and supply ground are connected.
• Unplug and reseat 5-pin connector and 3-pin connector at the control box.
• Unplug and reseat 3-pin connector and 2-pin connector at motor housing cover.
• Check IR filter connection at motor. This harness can sometimes be installed backward.
• Verify the colored wires are lined up properly (red to red, black to black, purple to purple).
• The clip on the extension tube harness should seat against the notch in the motor’s IR filter connector.

Remove and reinstall the light to ensure it is seated properly.

1. Turn off power to the fan at the wall switch or breaker.
2. Remove the light by twisting it counterclockwise.
3. Turn the fan back on for 60 seconds with the light removed.
4. Turn off power to the fan again.
5. Reinstall the light by inserting it into the bottom of the fan and twisting clockwise. Make sure you hear and feel the light lock into place.
6. Turn the fan back on and test with the remote control.

IOS DEVICES:

1. Download the Haiku Home App to your iOS device.
2. Open the app.
   1. If this is your first time using Haiku Home, create an account.
   2. If you already have a Haiku Home account, sign-in, Tap , and tap Add a Product.
3. On the Let’s Set Up Your Product! screen, tap Let’s Go.
4. Make sure your fan is installed and powered on, then tap Next.
5. When you see the Connect to Your Device screen, go to your device’s Settings app and navigate to Wi-Fi settings. Your fan’s default network will appear in the list of available networks, and it will begin with the word Haiku (e.g. Haiku_L_AA:BB:CC).
6. Tap on the fan’s Wi-Fi network and wait for the Wi-Fi symbol to appear in the status menu at the top of the screen.
7. Return to the Haiku Home app.
8. Tap Set It Up, then follow the instructions to name your fan and assign it to a room.
9. On the Connect Your Device screen, select I Have a Wi-Fi Network if you have an existing network in your home.
10. If you don’t have a Wi-Fi network, click here to learn about setting up an AP network.
11. On the next screen, select your Wi-Fi network from the list.
12. Enter your Wi-Fi password, and tap Next.
13. When the fan successfully joins your network, you will see a Congratulations! message.
    1. If you receive a message stating that your fan failed to join the network, see My fan failed to join my Wi-Fi network for further assistance.

Tap Add Another Device to connect other Haiku products to your home network.

Tap Finished Adding Devices if you don’t have any more Haiku products to connect right now.

ANDROID DEVICES:

Important: Before starting, make sure your Location Services and GPS are turned on in your mobile device’s settings.

1. Download the Haiku Home App to your Android device.
2. Open the app.
   1. If this is your first time using Haiku Home, create an account.
   2. If you already have a Haiku Home account, sign-in, tap , and tap Add a Product.
3. On the Let’s Set Up Your Product! screen, tap Let’s Go.
4. Make sure your fan is installed and powered on, then tap Next.
5. If you are using an Android device, you may be asked to allow location access. This lets us use the Wi-Fi radio in your phone/tablet to locate nearby Haiku devices that have not yet been set up.
6. At the Connect to Your Product screen, select your fan’s default network from the list of products (e.g. Haiku Fan (AA:BB:CC) – the characters inside the parentheses are each product’s unique identifier).
7. From the Room Setup screen:
   1. Tap Add Room to create a new room.
      • Select the room type.
      • Name your room, then tap Next.
   2. Choose a previously-created room (if you have set up one or more Haiku products already).
      • Be sure to place items that should work together (e.g. a fan and wall control) in the same room.
8. Name your fan, then tap Next.
9. On the Connect to Wi-Fi screen, select your Wi-Fi network from the list.
10. Enter your Wi-Fi network password and tap Next.
11. When the fan successfully joins your network, you will see a Setup Complete! Message.
    1. If you receive a message stating that there seems to be a problem, see My fan failed to join my Wi-Fi network for further assistance.

Tap Add Another Product to connect other Haiku devices to your home network.

Tap Finished if you don’t have any more Haiku devices to connect right now.

SenseME™ – the “smart” technology that allows your Haiku L fan to respond to changing room temperatures*, operate on a schedule**, work with the Haiku Home app**, and more – is only available when the fan is paired with Haiku WiFi Wall Control*** and a Haiku L WiFi module is installed.

With Wi-Fi module only:

• Fan speed and light brightness control
• Scheduled events
• Whoosh Mode control
• Voice control

With Wi-Fi module + Wi-Fi wall control:

• Fan speed and light brightness control
• Scheduled events
• Whoosh Mode control
• Voice control
• Smart Modes
• Motion control
• Sleep Mode
• Smart Thermostat pairing (Nest, ecobee)

Please give us a call if you have any questions.

*Feature requires Haiku WiFi wall control and WiFi module
**Feature requires WiFi module only
***Haiku WiFi Wall Control is a legacy product and no longer available for purchase

This is normal and may happen occasionally upon startup. An initial slight jerking forward and backward does not affect fan operation.

Each fan goes through a rigorous balancing process during which the airfoils and motor are uniquely paired. Changing airfoils requires a full fan replacement to maintain proper balance and functionality.

Sorry, no. Please contact Customer Service for assistance.
